Serving Machine Learning Models

Serving machine learning models means exposing trained models through APIs so that applications can send requests and receive predictions in real time. Once deployed, the runtime environment manages inference requests, routing, preprocessing, and response generation.

On the platform, these interactions are performed through standard ML APIs, allowing applications and tools to interact with deployed models using industry-standard protocols, such as Open Inference v2 protocol. This enables easy integration of machine learning capabilities into applications, automation pipelines, and development tools without requiring custom APIs.

Using the available runtimes, users can configure and deploy models directly through the platform by specifying only a small set of parameters such as the model name, runtime type, and optional runtime arguments.

This approach enables no-code or low-code model deployment, where the platform automatically handles the underlying infrastructure required to run the model, including container configuration, API exposure, and runtime orchestration.

Different runtimes support different types of machine learning workloads. The following examples illustrate typical runtime tasks that can be executed on the platform using either the platform SDK or the core console UI.


Scikit-Learn Model Serving

The sklearnserve runtime is commonly used for serving scikit-learn models for classification, regression, and clustering tasks. Applications can send feature vectors and receive predictions through standardized prediction APIs.

Example runtime tasks

Classification predictions

Applications send feature data to generate classification predictions.

Example:

  • Train a breast cancer classifier, deploy it as a REST API service.

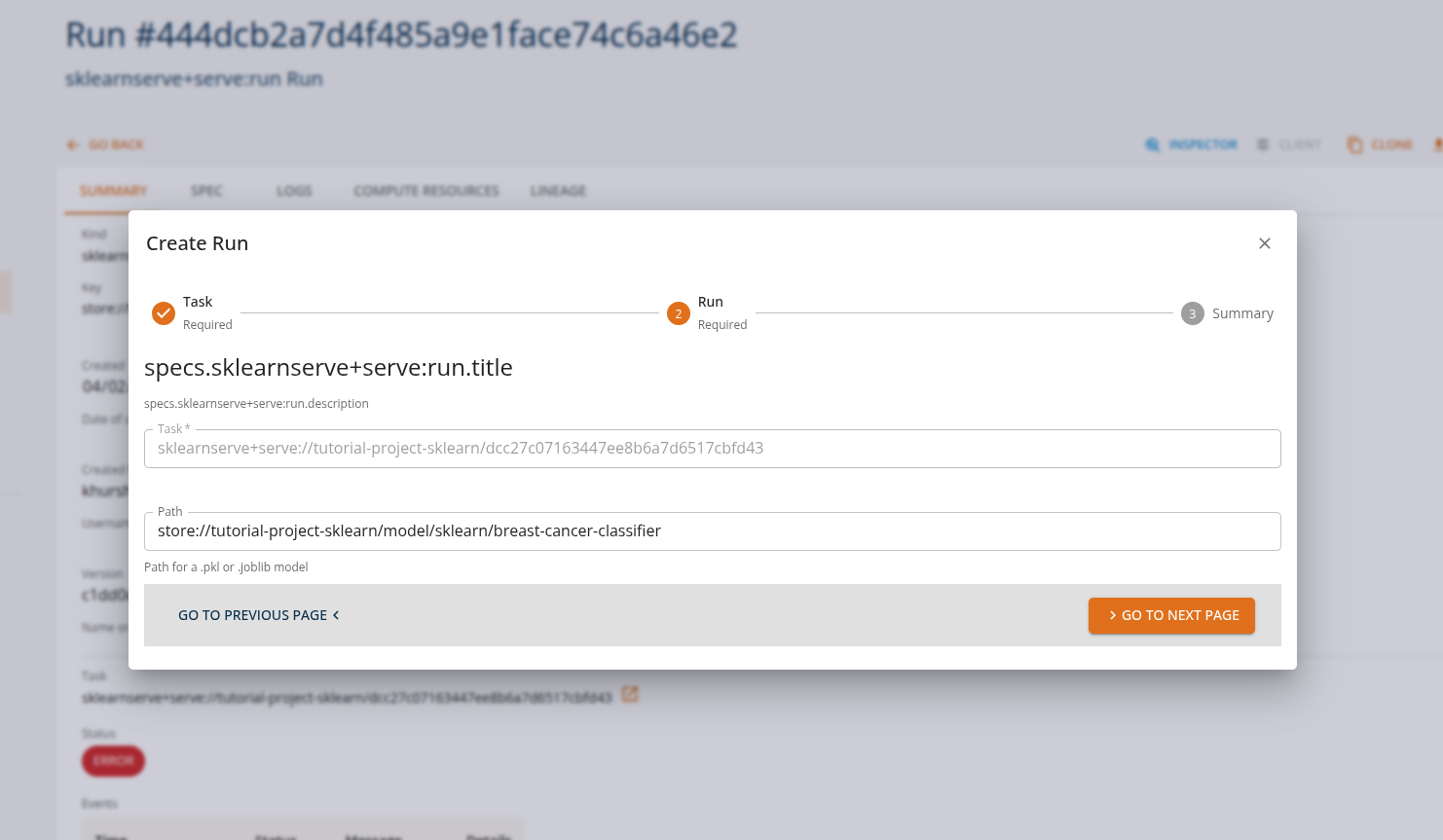

From the Core Manage UI, users can create a model serving task of kind 'sklearnserve+serve:run'.

configure model

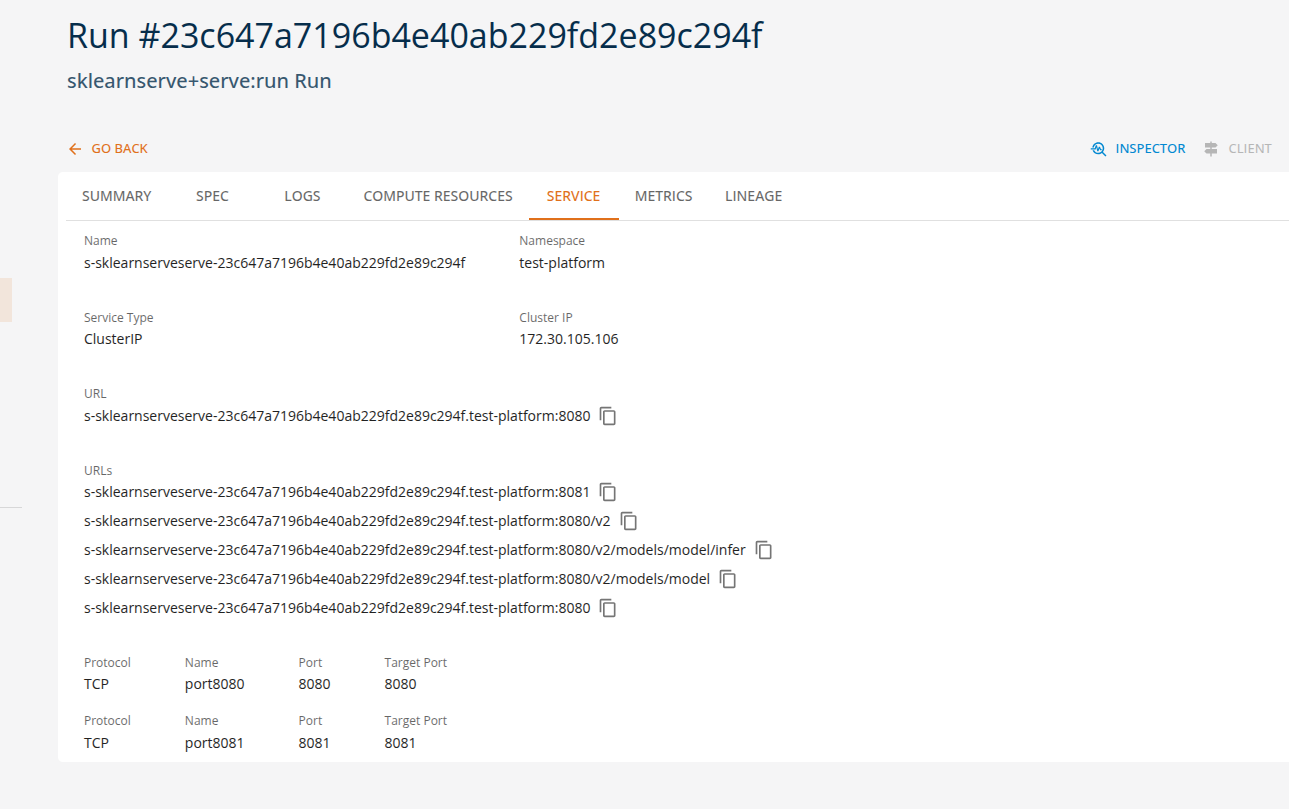

Users can view the API endpoints for their deployed services in the 'services' tab.

services


MLflow Model Serving

The mlflowserve runtime is designed for serving models tracked and logged with MLflow, supporting multiple frameworks including scikit-learn, TensorFlow, PyTorch, and XGBoost. These tasks can be executed through MLflow's standard serving API.

Example runtime tasks

Multi-framework model serving

Applications send inference requests to models regardless of the underlying framework.

Example:

  • Train an iris classifier (e.g., scikit-learn), log the model with MLflow, and deploy the logged artifact as a REST serving endpoint.

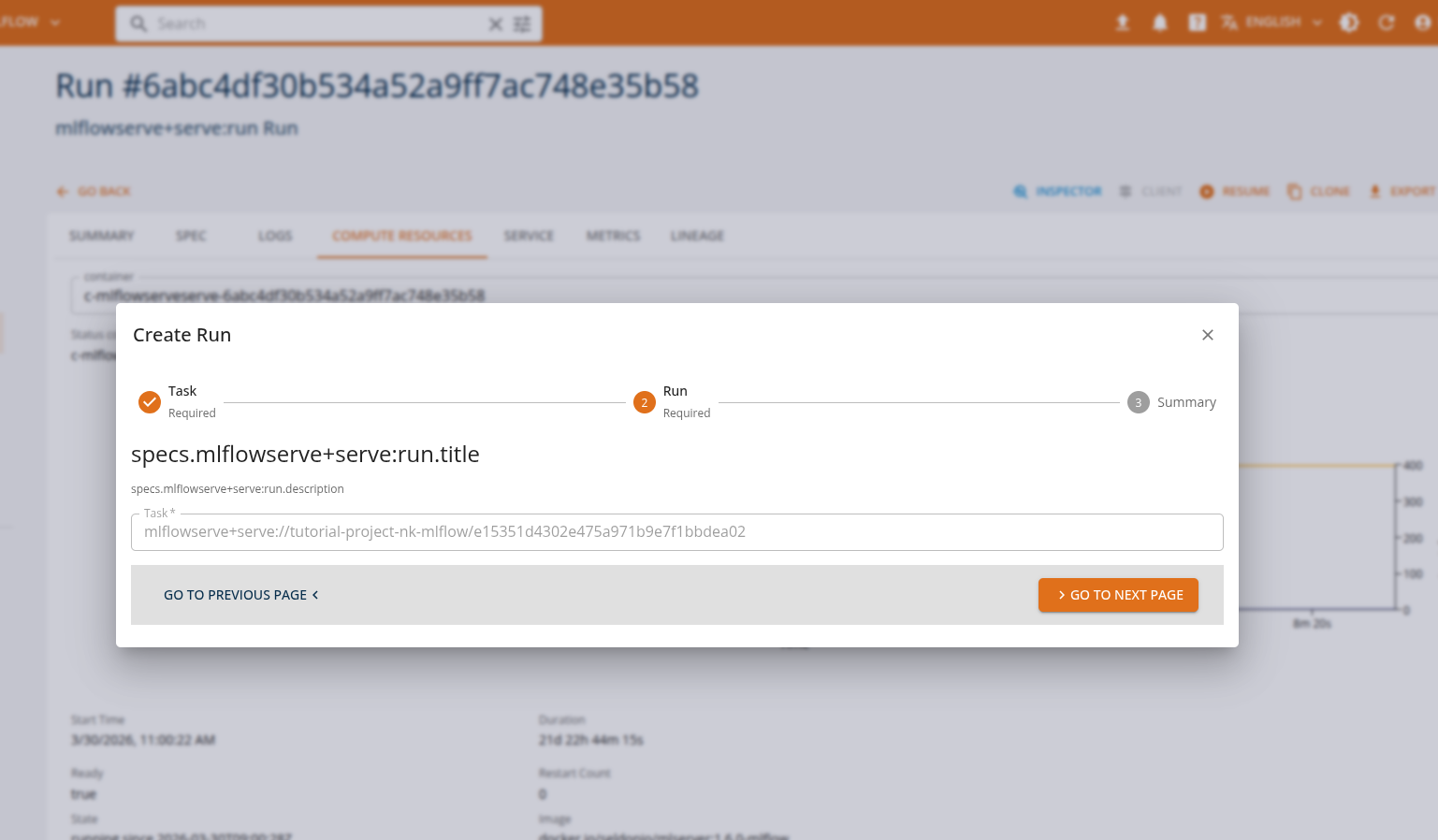

From the Core Manage UI, users can create a model serving task of kind 'mlflowserve+serve:run'.

configure model

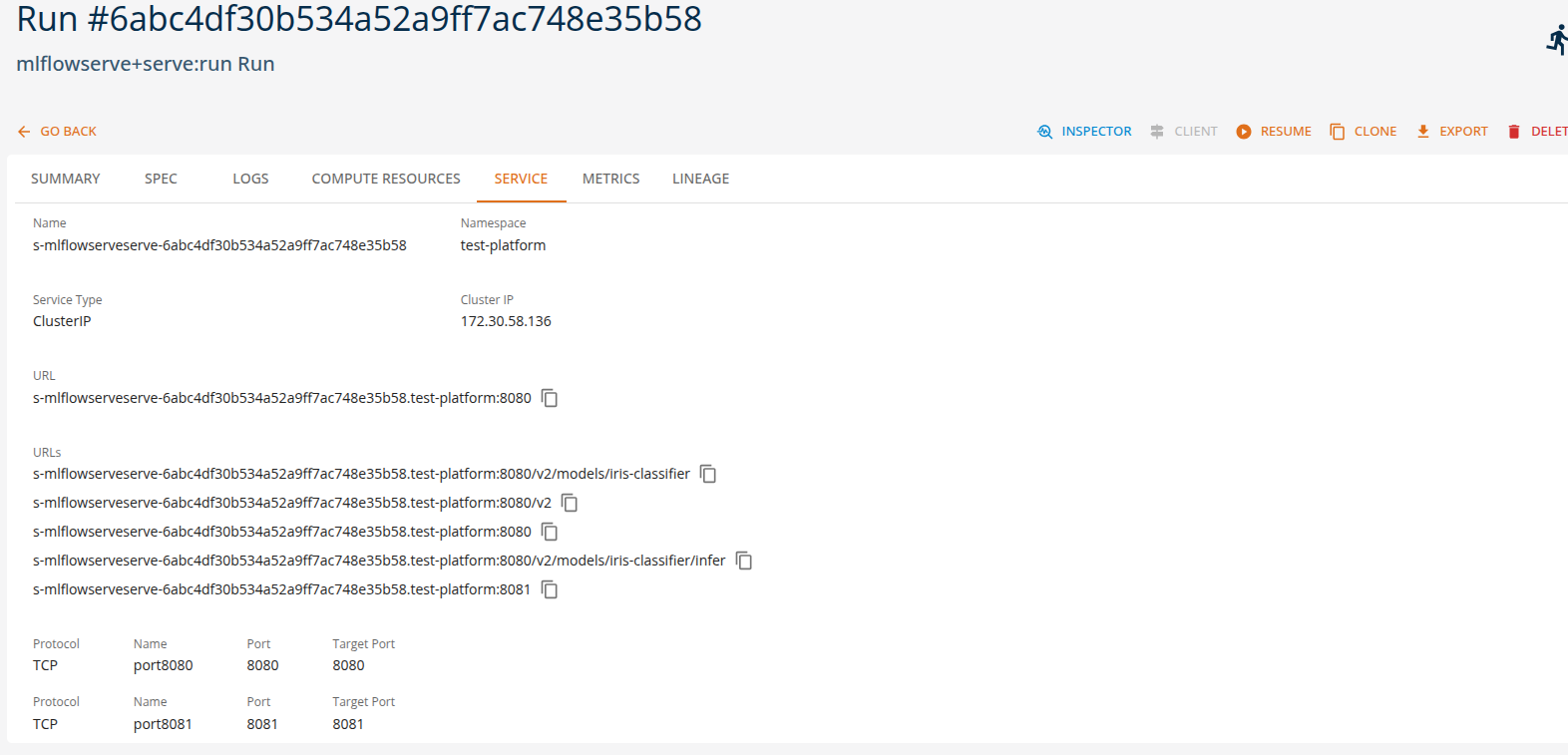

Users can view the API endpoints for their deployed services in the 'services' tab.

services


TVM Compiled Model Serving

The TVM runtime compiles ONNX and TFLite models for Linux CPUs and serves them through Open Inference v2 over REST and gRPC. Compile the same IR for AMD64, ARM64 or ARM32, then use a matching Go/Rust runtime. Performance depends on the model, target and tuning; measure it on the intended device.

Example runtime tasks

Compile once, serve on CPU

A model is converted, compiled for a target architecture and deployed, without writing code or building images.

Example:

  • Upload YOLOv8n as ONNX, create a tvm Function, run build, then compile with target_architecture: amd64, and deploy it with serve.

TVM options belong to each Run. Compile groups advanced settings under optimization and tuning; the Task retains common Kubernetes settings. profile selects scheduling/resources and is separate from the model target.

From the Core Manage UI, users can create the three runs from the build, compile and serve tabs of the function. The TVM tutorial shows the whole flow, including how to test the service from a local computer with the CLI.


Custom Model Serving

It is possible to expose a custom model through the python serverless or openinference runtimes. In the first case, the API is not limited to a specific format or protocol, and it is possible to define arbitrary HTTP API for interacting with the model. In the second case the exposed API is defined by the Open Inference v2 protocol, and allows for both HTTP and gRPC protocols. A custom model can be loaded from a local file or from a remote URL.

Example runtime tasks

  • Train a computer vision object detector using HuggingFace transformers library and publish the model on huggingface.co
  • Define a Python inference function that accespts the image as byte array input and returns a prediction
  • Define the corresponding input and ouptu tensor definitions and deploy the function using the Open Inference runtime.

InferenceV2 Client

The InferenceV2 Client is a specialized HTTP client built into the console for interacting with models served using the Open Inference Protocol (V2). It provides a streamlined interface for sending inference requests and inspecting model metadata, along with real-time health monitoring.

The InferenceV2 Client is selected when a service Run exposes Open Inference v2 metadata, including MLflow Serve, Scikit-learn Serve, OpenInference and TVM Serve. For TVM, the model name is the Run's served_name, or the Function name when omitted; service_name does not change the model endpoint.

Accessing the InferenceV2 Client

When a service run is in a RUNNING state and provides an Inference V2 endpoint, the CLIENT button becomes available on the service list or run detail page. Clicking the button opens a dialog with the InferenceV2 Client.

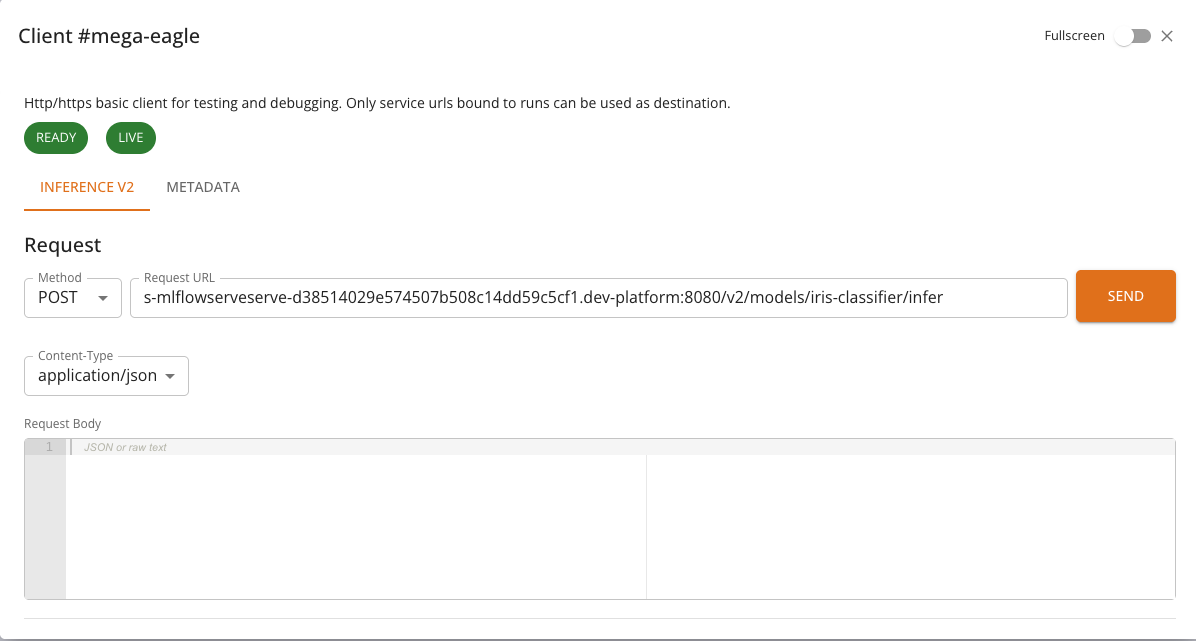

InferenceV2 Client placeholder

If the service does not expose an Inference V2 endpoint, the console will use the standard HTTP Client or the Chat Client, depending on the service type.

Health Monitoring

At the top of the InferenceV2 Client, two health indicators are displayed:

  • Ready: Indicates whether the model server is ready to accept inference requests. Calls GET {baseUrl}/v2/health/ready.
  • Live: Indicates whether the model server process is alive and responsive. Calls GET {baseUrl}/v2/health/live.

Each indicator is shown as a colored chip: green when healthy, red when unhealthy. If a health check fails, an error message is displayed below the chips. Health checks are performed automatically when the client opens and reflect the current state of the model server.

Tabs

The InferenceV2 Client provides two tabs:

Inference

The Inference tab is used to send prediction requests to the model. It provides:

  • A pre-configured POST request to {baseUrl}/v2/models/{model}/infer
  • A JSON request body editor for composing the inference payload
  • Response viewer for inspecting the model's prediction output
  • Request history for reviewing and replaying previous requests

The request body must follow the Open Inference Protocol V2 format. A typical inference request looks like:

{
  "inputs": [
    {
      "name": "input-0",
      "shape": [2, 4],
      "datatype": "FP64",
      "data": [
        [5.1, 3.5, 1.4, 0.2],
        [4.9, 3.0, 1.4, 0.2]
      ]
    }
  ]
}

And the response follows the V2 protocol format:

{
  "model_name": "iris-classifier",
  "id": "242bb1fa-7c32-424b-9bb8-ac413fc555ad",
  "parameters": { "content_type": "np" },
  "outputs": [
    {
      "name": "output-1",
      "shape": [2, 1],
      "datatype": "INT64",
      "parameters": { "content_type": "np" },
      "data": [0, 0]
    }
  ]
}

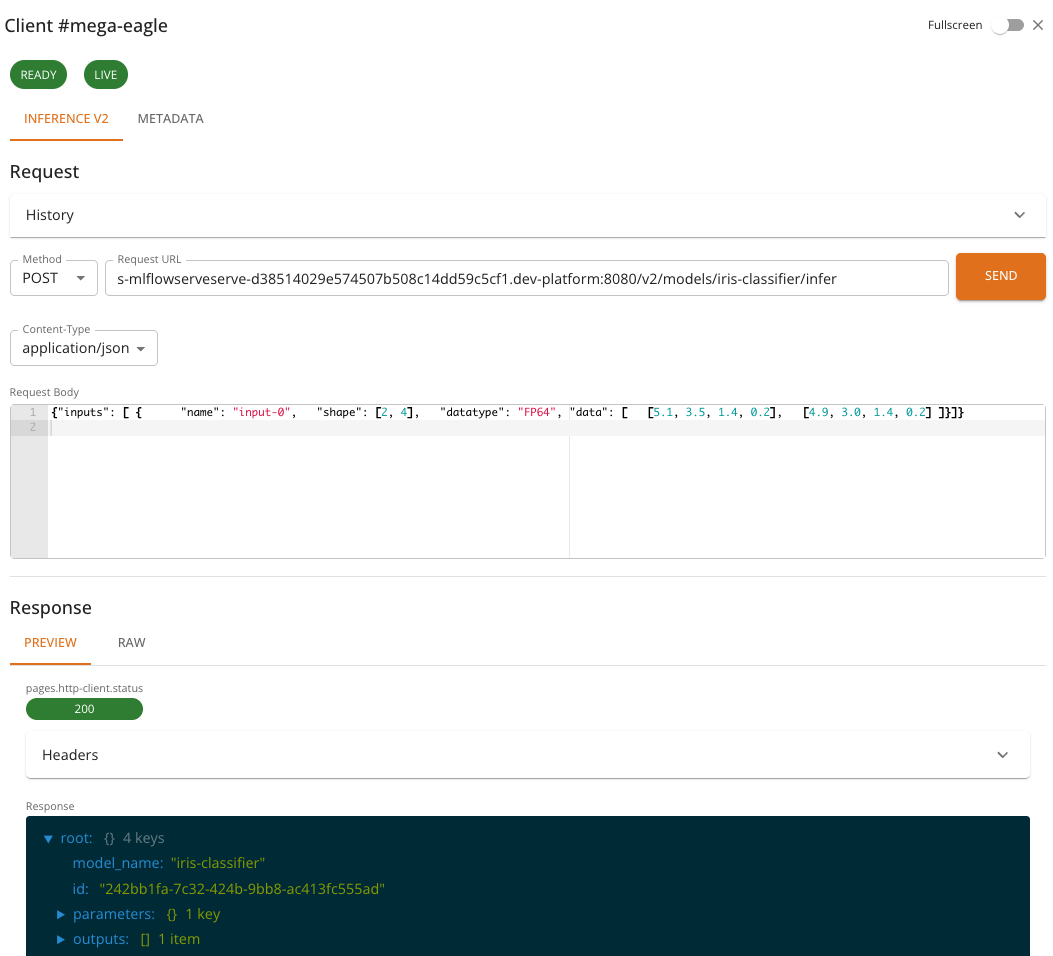

Inference tab placeholder

Metadata

The Metadata tab retrieves model metadata from the server. It sends a GET request to {baseUrl}/v2/models/{model} and displays information such as:

  • Model name and version
  • Supported inputs and outputs (names, shapes, data types)
  • Platform and runtime details

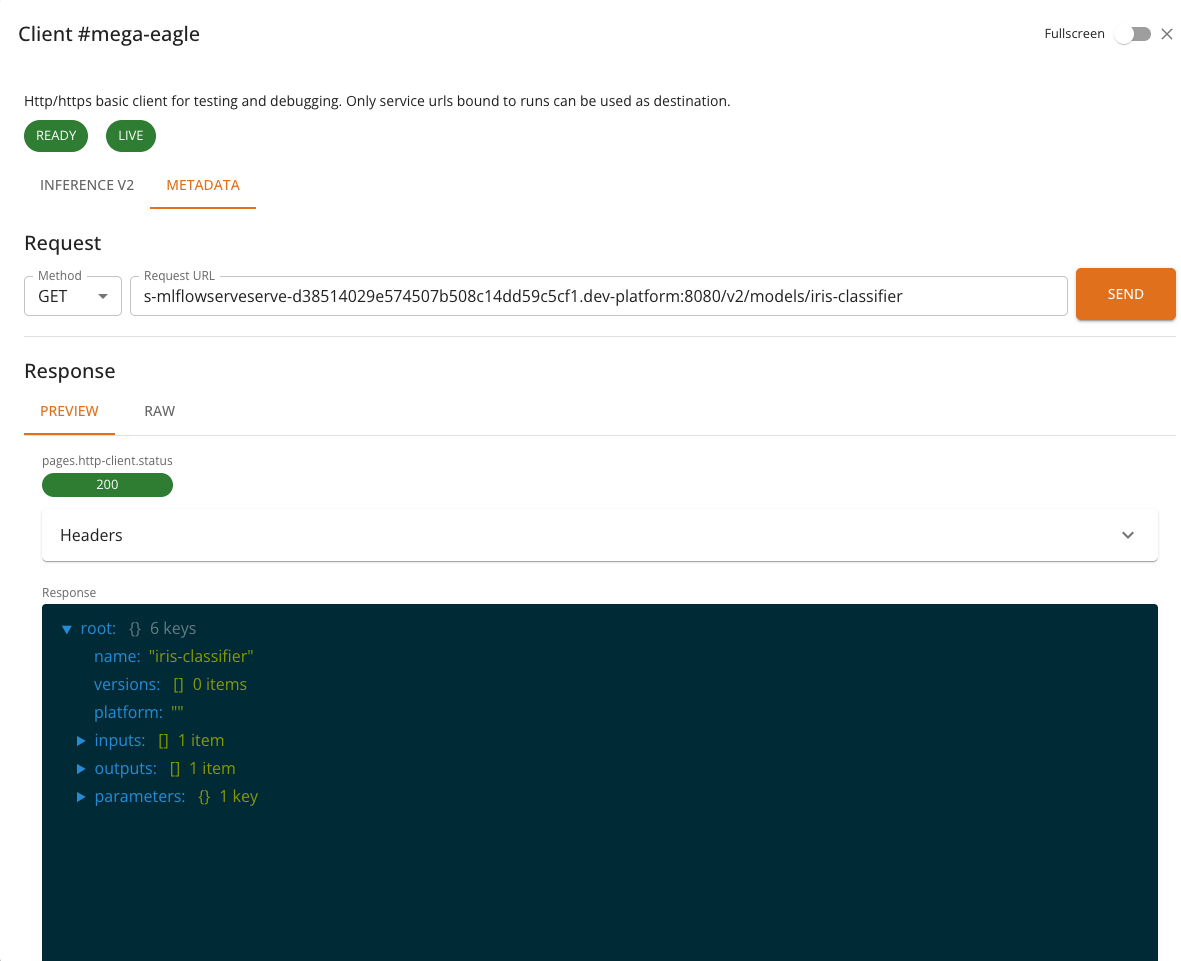

Metadata tab placeholder

Features

  • Pre-configured endpoints: The inference and metadata URLs are automatically constructed from the service's base URL and model name — no manual URL entry is required.
  • Health checks: Real-time readiness and liveness indicators give immediate feedback on model availability.
  • Request history: Previous inference requests and their responses are saved and can be replayed, making iterative testing easier.
  • JSON editor: The request body editor supports syntax highlighting and validation for JSON payloads.
  • Response viewers: Responses can be viewed as formatted JSON, raw text, or rendered HTML.
  • Full-screen mode: Toggle full-screen mode for more working space.

Usage

  1. Deploy an ML model using the MLflow Serve or Scikit-learn Serve runtime. See MLflow Serve Runtime or Scikit-learn Serve Runtime for details.
  2. Wait for the service to reach the RUNNING state.
  3. Click the CLIENT button in the service list or run detail page.
  4. Check the health indicators at the top — both Ready and Live should be green.
  5. In the Inference tab, compose your request body in the JSON editor.
  6. Click Send to submit the inference request.
  7. Inspect the response in the viewer below.
  8. Optionally, switch to the Metadata tab to view model information.

Notes

  • The InferenceV2 Client restricts requests to POST for inference and GET for metadata — the HTTP method cannot be changed manually.
  • All communication is mediated by the platform backend. The model's service URL is internal to the cluster and not accessible from outside the platform.
  • Request history is stored locally in the browser and is not shared across users or devices.
  • The number of saved history entries is limited to the 10 most recent requests.

Summary

On the DigitalHub platform, machine learning models can be served using multiple runtimes while maintaining consistent prediction API interfaces. This enables applications to perform various ML inference tasks without changing client-side integration.

Runtime Example Tasks Console Client
sklearnserve classification, regression, clustering InferenceV2 Client
mlflowserve multi-framework serving, model versioning, A/B testing InferenceV2 Client
python serverless custom model serving HTTP Client
openinference custom model serving with Open Inference v2 protocol HTTP Client

Note: Refer to the Tutorial section for more detailed usage and examples.
